Lab 3.4 — Two Views, One Attack

Lab Overview

The Scenario

The incident response team has been activated for Operation Wire Tap. The IR lead needs a unified timeline that combines evidence from BOTH the network IDS (Suricata, which you can query in EveBox) and the SIEM (Wazuh, whose alert data is described for you below). Your job is to map every attack phase using both sources, identify gaps in visibility, and produce a professional incident report.

Reference: Wazuh Alert Summary (Host-Based View)

Since this lab runs the Suricata profile, you will work hands-on with EveBox for network data. The Wazuh (SIEM) data from the same scenario is summarized below for correlation:

Wazuh Alerts — By Phase

Phase 1: Initial Reconnaissance

• Rule 18152: Windows brute force attempt from 91.234.99.87 → WIN-SERVER-01 (15 events)
• Rule 5551: SSH authentication failure from 185.220.101.42 → linux-web-01 (20 events)
• Rule 5712: SSH brute force attack from 185.220.101.42 (threshold alert, 1 event)

Phase 2: Exploitation

• Rule 31103: SQL injection attempt via POST (sqlmap user-agent) → linux-web-01 (3 events)
• Rule 31104: Common SQL injection attack detected (8 events)
• Rule 100002: Suspicious command execution — base64-encoded reverse shell → linux-web-01 (1 event)

Phase 3: Post-Exploitation

• Rule 5402: www-data executed sudo /usr/bin/id on linux-web-01 (1 event)
• Rule 5402: www-data executed sudo /bin/bash -c 'cat /etc/shadow' on linux-web-01 (1 event)
• Rule 5402: www-data opened full /bin/bash shell via sudo on linux-web-01 (1 event)

Phase 4: Persistence & Lateral Movement

• Rule 60106: Successful logon after multiple failures from 91.234.99.87 → WIN-SERVER-01 (1 event)
• Rule 7045: New service installed on WIN-SERVER-01 (1 event)
• Rule 100003: Suspicious PowerShell execution on WIN-SERVER-01 (2 events)

Phase 5: Data Staging

• Agent heartbeat anomaly: dns-server-01 showed unusual outbound traffic spike
• FIM alert: /var/log/auth.log modified on linux-web-01 (log tampering indicator)

Part 1: Phase Mapping — Reconnaissance

Network View (EveBox — Hands-On)

Open EveBox and find alerts related to the reconnaissance phase:

1. Scan/probe alerts: Find Nmap or scanning signatures. Record the source IPs, destination IPs, and ports targeted.
2. Protocol anomalies: Look for unusual connection patterns (half-open connections, rapid port cycling).
3. Record the earliest scan timestamp — this is the attack start time.

SIEM View (Wazuh — Reference Data Above)

From the Wazuh summary:

• SSH brute force from 185.220.101.42 (20 failures + threshold alert)
• Windows brute force from 91.234.99.87 (15 failures)

Correlation Exercise

PHASE 1: RECONNAISSANCE
════════════════════════
Timeline: [start time] to [end time]

NETWORK VIEW (Suricata/EveBox):
  Alert: [signature name]
  Source: [IP] → Dest: [IP]
  Evidence: [what the packets show]
  Count: [number of alerts]

SIEM VIEW (Wazuh):
  Alert: Rule 18152 — Windows brute force
  Source: 91.234.99.87 → WIN-SERVER-01
  Evidence: 15 failed logon events (Event ID 4625)

  Alert: Rule 5712 — SSH brute force
  Source: 185.220.101.42 → linux-web-01
  Evidence: 20+ failed SSH authentications

CORRELATION NOTES:
  [What does each view show that the other misses?]
  [Do the timestamps align between network and host events?]

Part 2: Phase Mapping — Exploitation

Network View (EveBox — Hands-On)

Find exploitation-related alerts:

1. SQL injection signatures: Look for UNION SELECT, web application attack classtypes
2. Web shell indicators: Look for HTTP response anomalies, command output in responses
3. C2 establishment: Find initial callback or beacon alerts

Record the exact signatures, payloads (if visible), and timestamps.

SIEM View (Wazuh — Reference Data)

From the Wazuh summary:

• SQL injection POST attempts via sqlmap (Rule 31103)
• Base64-encoded reverse shell execution (Rule 100002)

Correlation Exercise

Answer these questions:

1. Does Suricata show the SQL injection PAYLOAD (the actual UNION SELECT query)?
2. Does Wazuh show the SQL injection payload or just the rule match?
3. Which platform detected the reverse shell? Could BOTH detect it?
4. What is the time gap between the SQL injection and the reverse shell execution?

Click to enlarge

Part 3: Phase Mapping — Post-Exploitation

Network View (EveBox)

Look for post-exploitation network indicators:

1. C2 beacon traffic: Regular outbound connections from the compromised host
2. DNS tunneling: Encoded DNS queries starting after exploitation
3. Data transfer: Large outbound data flows to external IPs

SIEM View (Wazuh — Reference Data)

From the Wazuh summary:

• www-data → sudo → /usr/bin/id (privilege check)
• www-data → sudo → cat /etc/shadow (credential theft)
• www-data → sudo → /bin/bash (full root shell)

Correlation Exercise

This phase shows the strongest complementary visibility:

Part 4: Phase Mapping — Lateral Movement & Persistence

Network View (EveBox)

Find lateral movement indicators:

1. SMB traffic between internal hosts: Unexpected east-west connections
2. Internal scanning: The compromised host scanning other internal systems
3. Credential relay: Pass-the-hash or other credential-based movement

SIEM View (Wazuh — Reference Data)

From the Wazuh summary:

• Successful logon from 91.234.99.87 → WIN-SERVER-01 (Rule 60106)
• New service installed on WIN-SERVER-01 (Rule 7045)
• Suspicious PowerShell execution (Rule 100003)

Correlation Exercise

Map the lateral movement chain:

1. Network: What protocol/port did the lateral movement use?
2. SIEM: What did the attacker DO after landing on WIN-SERVER-01?
3. Combined: Build the sequence — initial access → credential reuse → service installation → PowerShell execution

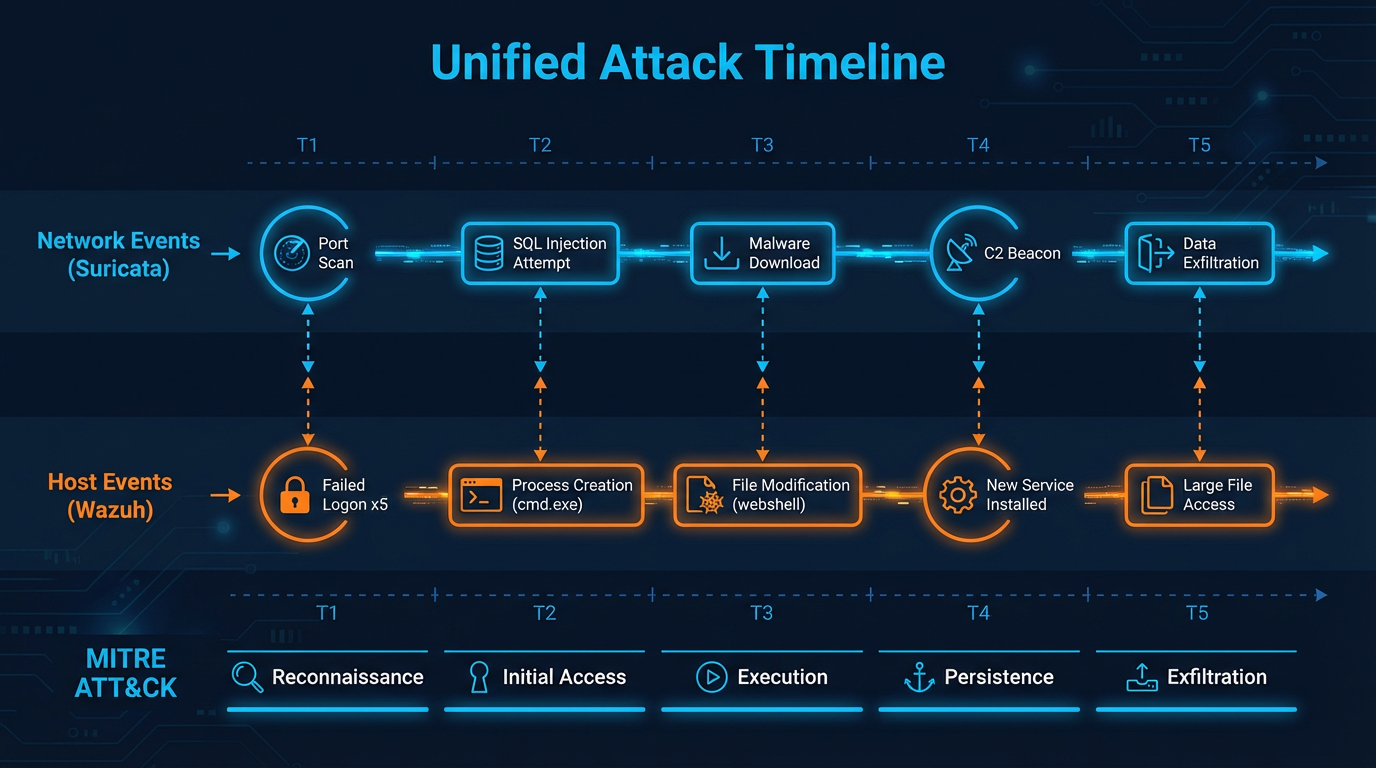

Part 5: Build the Unified Incident Timeline

Combine all phases into a single, chronological timeline:

UNIFIED INCIDENT TIMELINE — OPERATION WIRE TAP
═══════════════════════════════════════════════
Classification: Confirmed Multi-Stage Intrusion
Date: [today's date]
Analyst: [your name]

TIME       | PHASE           | SOURCE  | EVIDENCE
───────────|─────────────────|─────────|──────────────────────────
[HH:MM:SS] | Recon           | Network | Nmap SYN scan from [IP] — [count] ports probed
[HH:MM:SS] | Recon           | SIEM    | SSH brute force from 185.220.101.42 — 20 failures
[HH:MM:SS] | Recon           | SIEM    | Windows brute force from 91.234.99.87 — 15 failures
[HH:MM:SS] | Exploitation    | Network | SQL injection payload: UNION SELECT detected
[HH:MM:SS] | Exploitation    | SIEM    | Rule 31103: SQL injection via sqlmap POST
[HH:MM:SS] | Exploitation    | SIEM    | Rule 100002: Base64 reverse shell executed
[HH:MM:SS] | C2 Established  | Network | C2 beacon to [IP]:[port] — [interval] second interval
[HH:MM:SS] | Post-Exploit    | SIEM    | www-data → sudo → id (privilege check)
[HH:MM:SS] | Post-Exploit    | SIEM    | www-data → sudo → cat /etc/shadow
[HH:MM:SS] | Post-Exploit    | SIEM    | www-data → sudo → /bin/bash (full root)
[HH:MM:SS] | Lateral Move    | Network | SMB connections to internal targets
[HH:MM:SS] | Lateral Move    | SIEM    | Successful logon on WIN-SERVER-01
[HH:MM:SS] | Persistence     | SIEM    | New service installed on WIN-SERVER-01
[HH:MM:SS] | Exfiltration    | Network | DNS tunneling queries to [domain]

Click to enlarge

Part 6: Visibility Gap Analysis

Complete this analysis to understand each platform's strengths:

VISIBILITY GAP ANALYSIS
════════════════════════

SEEN BY NETWORK IDS ONLY:
  - [list indicators only Suricata detected]

SEEN BY SIEM ONLY:
  - [list indicators only Wazuh detected]

SEEN BY BOTH:
  - [list indicators both platforms detected]

BLIND SPOTS (Neither detected):
  - [list potential attack activities neither platform saw]

RECOMMENDATION:
  [What additional data sources would close the gaps?]

Deliverable Checklist

Before completing the lab, ensure you have:

• Phase 1 correlation — reconnaissance from both network and SIEM perspectives
• Phase 2 correlation — exploitation with payload comparison between platforms
• Phase 3 correlation — post-exploitation visibility gap analysis
• Phase 4 correlation — lateral movement and persistence chain
• Unified timeline — all phases in chronological order with source labels
• Visibility gap analysis — what each platform saw, missed, and recommendations

What's Next

In Lab 3.5 — PCAP Analysis with Wireshark, you will go even deeper into the network layer. Instead of working with Suricata's alert-level view, you will analyze raw packet captures — examining TCP handshakes, HTTP request payloads, DNS tunneling packets, and C2 beacon traffic at the byte level.
