Lab OS.3 — Event Log Deep Dive

Lab Overview

The Scenario

Your incident response team has been tracking a multi-stage attack across the organization's infrastructure. Previous analysis (Labs OS.1 and OS.2) identified a C2 beacon, registry persistence, and a webshell on the Windows server. Now leadership needs the full picture: "Show us the timeline. When did they get in, what did they do, and did they try to cover their tracks?"

Your Wazuh environment has 505 pre-loaded alerts from 4 agents. The Windows server (WIN-SERVER-01) generated alerts that map directly to Windows Event Log entries. Your job is to identify the critical Event IDs, understand what each one means, and stitch them together into a coherent attack timeline.

Part 1: Understanding Windows Event Log Structure

Event Log Channels

Windows organizes events into channels (log files). The most security-relevant ones are:

Event Log Entry Structure

Every Windows event contains:

Part 2: The Critical Event IDs

Event ID Reference Card

These five Event IDs are the foundation of Windows security analysis. You will find evidence of each in the lab data:

Part 3: Hunting Event IDs in Wazuh

Step 1 — Access the Wazuh Dashboard

Once your lab reaches READY status, click Open Lab to launch the Wazuh Dashboard. Log in with the credentials shown on the lab page. Navigate to Security Events under the Threat Intelligence section.

Step 2 — Filter for WIN-SERVER-01

In the search bar, enter:

agent.name: WIN-SERVER-01

This filters to only the Windows server's alerts. Record the total count — this is your investigation scope.

Step 3 — Hunt for Event ID 4625 (Failed Logons)

Refine your query:

agent.name: WIN-SERVER-01 AND data.win.system.eventID: 4625

For each failed logon event, examine:

• data.win.eventdata.targetUserName: Which account was targeted?
• data.win.eventdata.ipAddress: Where did the attempt come from?
• data.win.eventdata.logonType: What type of logon was attempted?
• data.win.eventdata.failureReason: Why did it fail?

Document in your matrix:

EVENT ID 4625 — FAILED LOGON
─────────────────────────────
Total Count:       [number]
Target Accounts:   [list of usernames]
Source IPs:        [list of IPs]
Logon Types:       [types observed]
Time Range:        [first] to [last]
Pattern:           [brute force / credential stuffing / targeted]
Significance:      [what this tells you about the attack]

Step 4 — Hunt for Event ID 4624 (Successful Logons)

agent.name: WIN-SERVER-01 AND data.win.system.eventID: 4624

This is the critical question: Did the brute force succeed? Examine each successful logon:

• TargetUserName: Which account logged in?
• IpAddress: Is the source IP one of the brute force IPs from Step 3?
• LogonType: Type 3 (network) or Type 10 (RDP) from an attacker IP is confirmation of compromise
• TimeCreated: Does the successful logon come AFTER the failed attempts?

Document your findings. If you find a successful logon from the same IP that was brute-forcing, you've confirmed initial access.

Click to enlarge

Step 5 — Hunt for Event ID 4688 (Process Creation)

agent.name: WIN-SERVER-01 AND data.win.system.eventID: 4688

Process creation events show exactly what commands the attacker executed after gaining access. Look for:

• NewProcessName: The executable that was launched
• CommandLine: The full command with arguments (if command-line auditing is enabled)
• ParentProcessName: What launched the process
• SubjectUserName: Which account ran the command

Sort chronologically and look for the attack sequence:

1. Reconnaissance commands (whoami, ipconfig, net user, systeminfo)
2. Privilege escalation attempts
3. Persistence installation (creating services, modifying registry)
4. Lateral movement (net use, psexec, wmic)
5. Data access or exfiltration

Step 6 — Hunt for Event ID 7045 (Service Installation)

agent.name: WIN-SERVER-01 AND data.win.system.eventID: 7045

Every time a new Windows service is installed, Event ID 7045 fires. Cross-reference the service details with your Lab OS.2 findings:

• ServiceName: Does it match the suspicious service you found?
• ImagePath: Does the binary path point to a user-writable directory?
• ServiceType: User mode or kernel mode?
• StartType: Auto start (persistence) or demand start (manual)?

Step 7 — Hunt for Event ID 1102 (Log Cleared)

agent.name: WIN-SERVER-01 AND data.win.system.eventID: 1102

Event ID 1102 is generated when the Security event log is cleared — a classic anti-forensics technique. If present:

• When was the log cleared? (relative to other attack events)
• Who cleared it? (SubjectUserName and SubjectDomainName)
• What's missing? (events between the last pre-clear event and the 1102 entry)

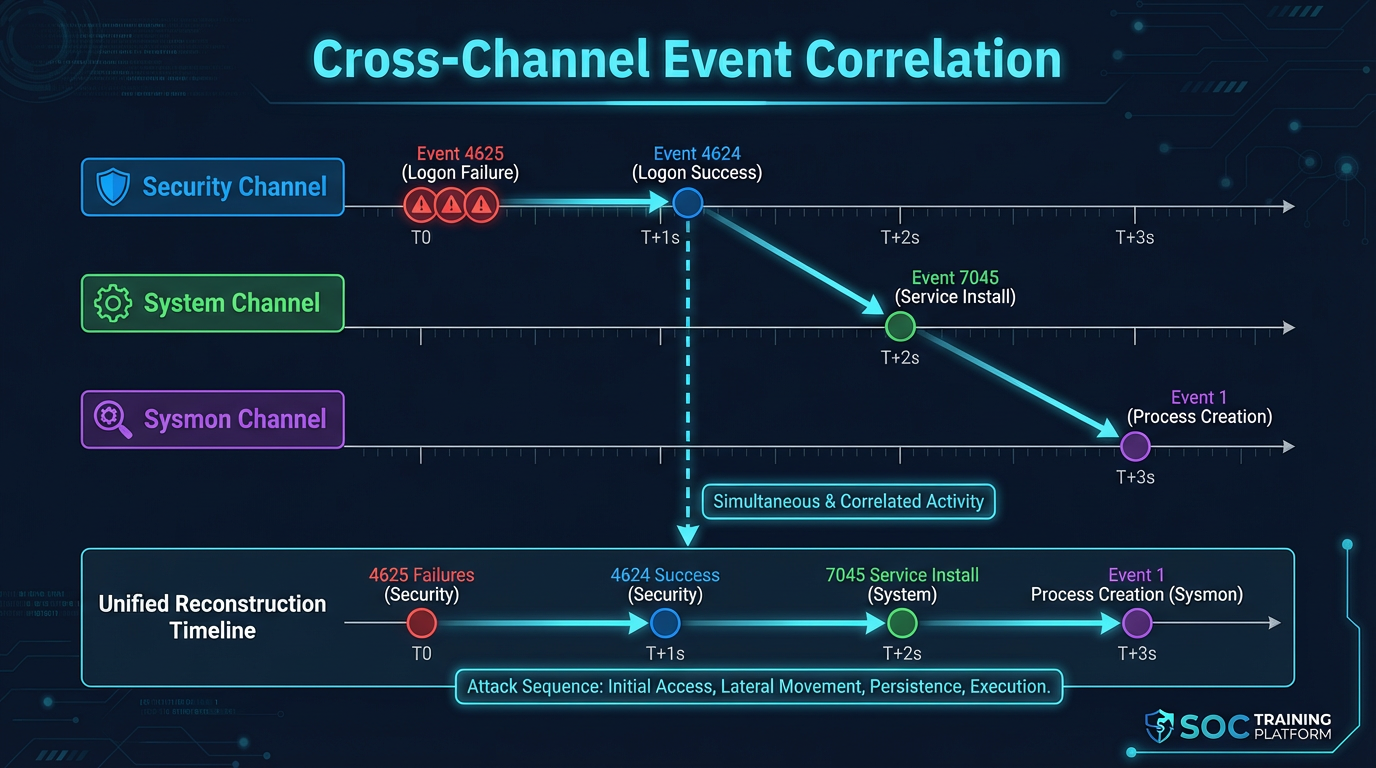

Part 4: Cross-Channel Correlation

Step 8 — Build the Timeline

The real power of Event Log analysis comes from correlating events across channels. Create a chronological timeline combining all your findings:

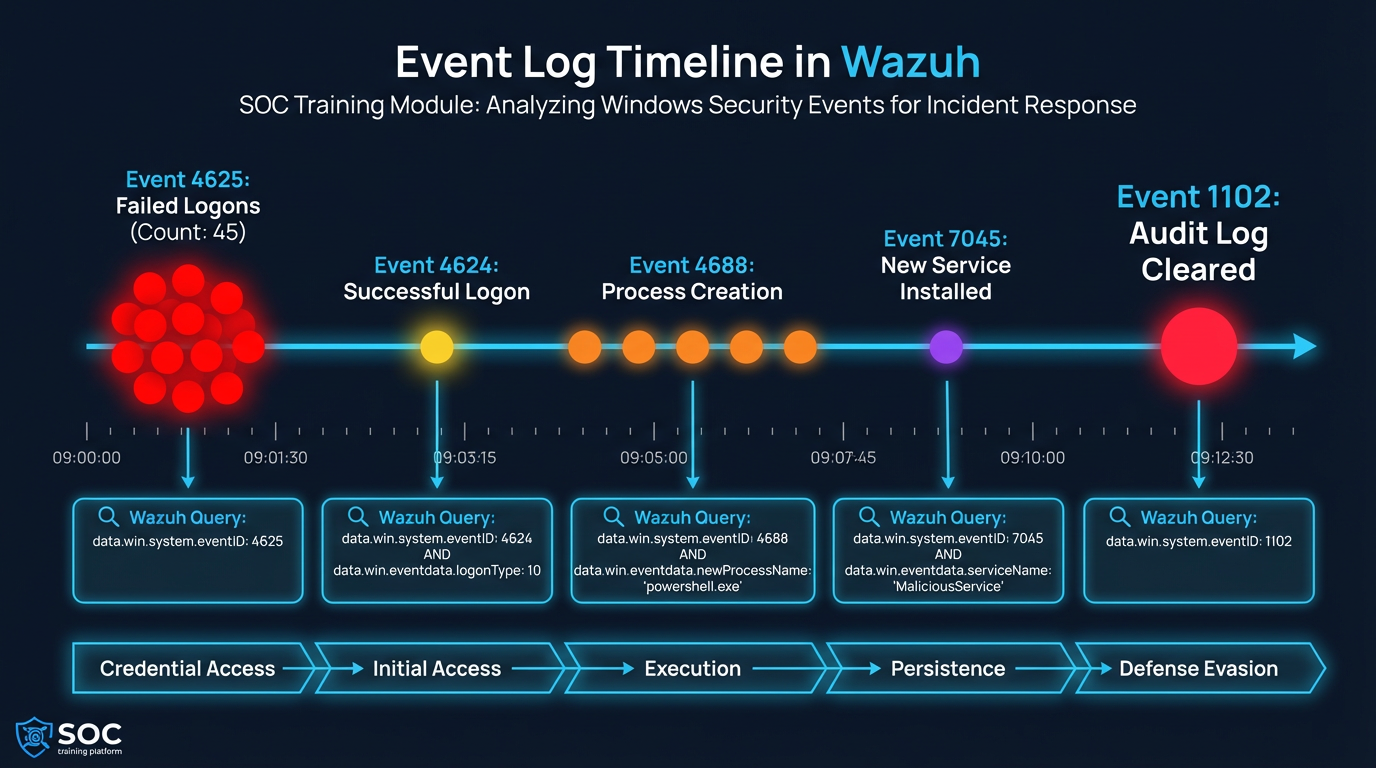

ATTACK TIMELINE (from Event Logs)
═════════════════════════════════

[Timestamp 1] — Event 4625 (Security)
  Failed logon: [user] from [IP], Type [X]
  → RECONNAISSANCE / INITIAL ACCESS ATTEMPT

[Timestamp 2] — Event 4625 (Security)
  [Repeated failures...]
  → BRUTE FORCE IN PROGRESS

[Timestamp 3] — Event 4624 (Security)
  Successful logon: [user] from [IP], Type [X]
  → INITIAL ACCESS ACHIEVED

[Timestamp 4] — Event 4688 (Security)
  Process created: [command]
  → POST-EXPLOITATION / RECONNAISSANCE

[Timestamp 5] — Event 7045 (System)
  Service installed: [service name], path: [binary path]
  → PERSISTENCE ESTABLISHED

[Timestamp 6] — Event 4688 (Security)
  Process created: [suspicious command]
  → LATERAL MOVEMENT / DATA ACCESS

[Timestamp 7] — Event 1102 (Security) [if present]
  Security log cleared by [user]
  → ANTI-FORENSICS / DEFENSE EVASION

Step 9 — Identify Gaps

Examine your timeline for gaps — periods where you'd expect activity but have no events. These gaps might indicate:

• Log clearing that removed specific events
• Activity that occurred in channels you haven't checked
• Attacker use of techniques that don't generate standard events (e.g., in-memory execution)

Click to enlarge

Part 5: Build Your Event Log Investigation Matrix

Compile your complete analysis into a structured matrix:

EVENT LOG INVESTIGATION MATRIX
══════════════════════════════
Environment:   CyberBlue Lab (Wazuh)
Analyst:       [your name]
Date:          [today's date]
Scope:         WIN-SERVER-01 events in pre-loaded dataset

EVENT ID | COUNT | CHANNEL  | SIGNIFICANCE          | ATTACK PHASE
─────────┼───────┼──────────┼───────────────────────┼─────────────
4625     | [n]   | Security | Failed logon attempts | Initial Access
4624     | [n]   | Security | Successful logon      | Initial Access
4688     | [n]   | Security | Process creation      | Execution
7045     | [n]   | System   | Service installed     | Persistence
1102     | [n]   | Security | Log cleared           | Defense Evasion

KEY CORRELATIONS
────────────────
1. 4625 → 4624: Brute force succeeded (same IP, user: [user])
2. 4624 → 4688: Post-access command execution (recon, then persistence)
3. 4688 → 7045: Service created by attacker process
4. 7045 ↔ OS.2 findings: Service matches registry/file persistence
5. 1102 timing: [Cleared before/after/not present]

INVESTIGATION GAPS
──────────────────
- [List any time gaps, missing expected events, or unexplained activity]

RECOMMENDATIONS
───────────────
1. Enable command-line auditing (if not already active)
2. Forward all Event Log channels to Wazuh (not just Security)
3. Set up Wazuh rules for the specific Event IDs in this matrix
4. Consider Sysmon deployment for enhanced process tracking
5. Implement log backup to prevent anti-forensics via log clearing

Deliverable Checklist

Before completing the lab, ensure you have:

• Event ID 4625 Analysis — Failed logon events documented with source IPs, target accounts, and brute force pattern
• Event ID 4624 Analysis — Successful logons examined for attacker access confirmation
• Event ID 4688 Analysis — Process creation events showing post-exploitation commands
• Event ID 7045 Analysis — Service installation events cross-referenced with Lab OS.2 findings
• Event ID 1102 Check — Log clearing evidence documented (presence or absence)
• Attack Timeline — Chronological reconstruction connecting all Event IDs
• Event Log Investigation Matrix — Complete matrix with counts, significance, and correlations

What's Next

In Lab OS.4 — Memory Triage, you'll take endpoint investigation to the next level by analyzing memory artifacts. While Event Logs show what happened, memory analysis reveals what's currently running — including injected code, unpacked malware, and encryption keys that never touch disk.
