String Patterns & Matching

Beyond Basic Strings: Why Modifiers Matter

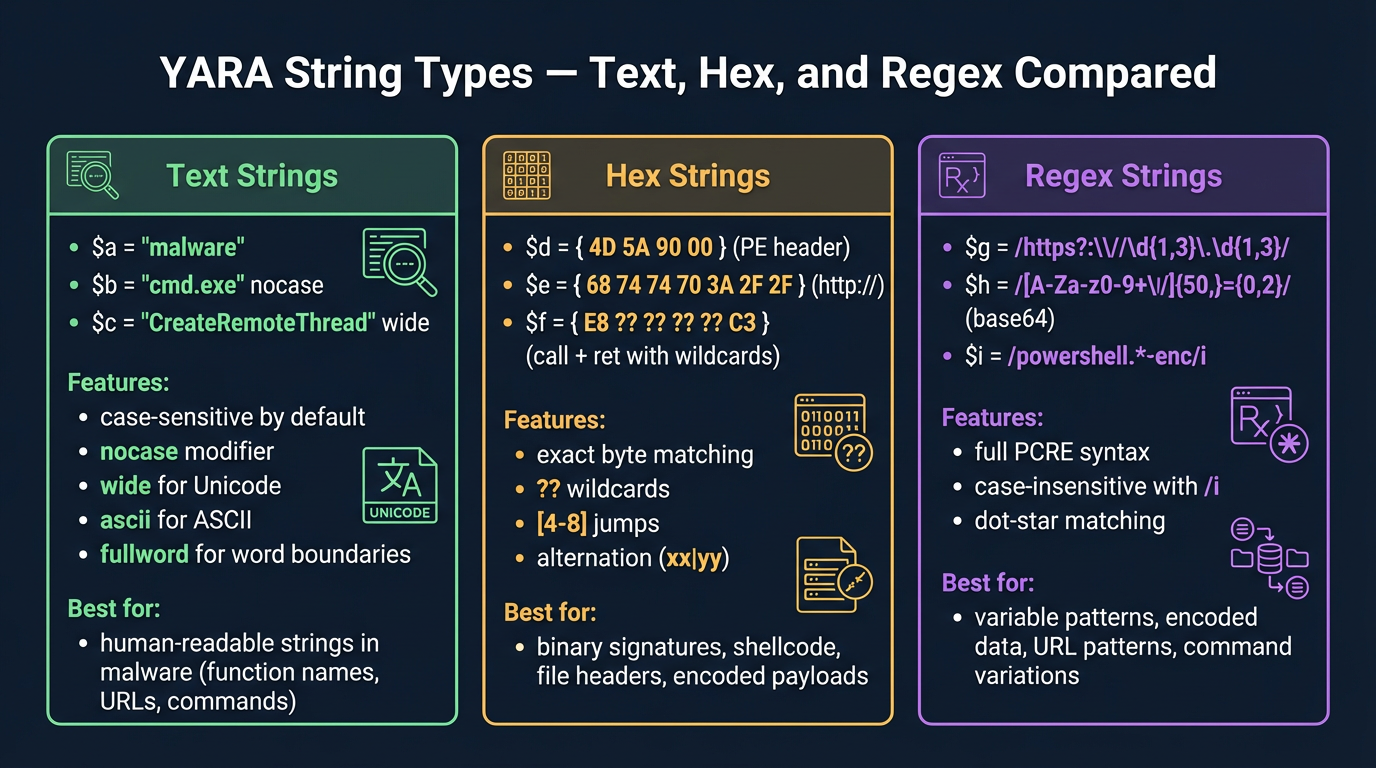

In Lesson 7.1, you learned the three string types: text, hex, and regex. A basic text string like $s = "cmd.exe" works, but it only matches that exact case and encoding. Real malware is not that cooperative.

Attackers deliberately vary their strings to evade detection:

• Case variation: CMD.EXE, Cmd.Exe, cMd.ExE — different cases defeat case-sensitive matching
• Unicode encoding: Windows APIs often use UTF-16 (wide) strings internally — cmd.exe becomes c\x00m\x00d\x00.\x00e\x00x\x00e\x00 in memory
• XOR encoding: A single-byte XOR turns readable strings into gibberish that text matching cannot find
• Base64 encoding: PowerShell's -enc parameter accepts Base64-encoded commands — the string cmd.exe becomes Y21kLmV4ZQ==
• Substring embedding: The string cmd might appear inside acmdline or tcmd_tool — matching substrings creates false positives

YARA's string modifiers solve all of these problems. They transform a basic text match into a flexible detection engine that catches variants without requiring separate rules for each variation.

Click to enlarge

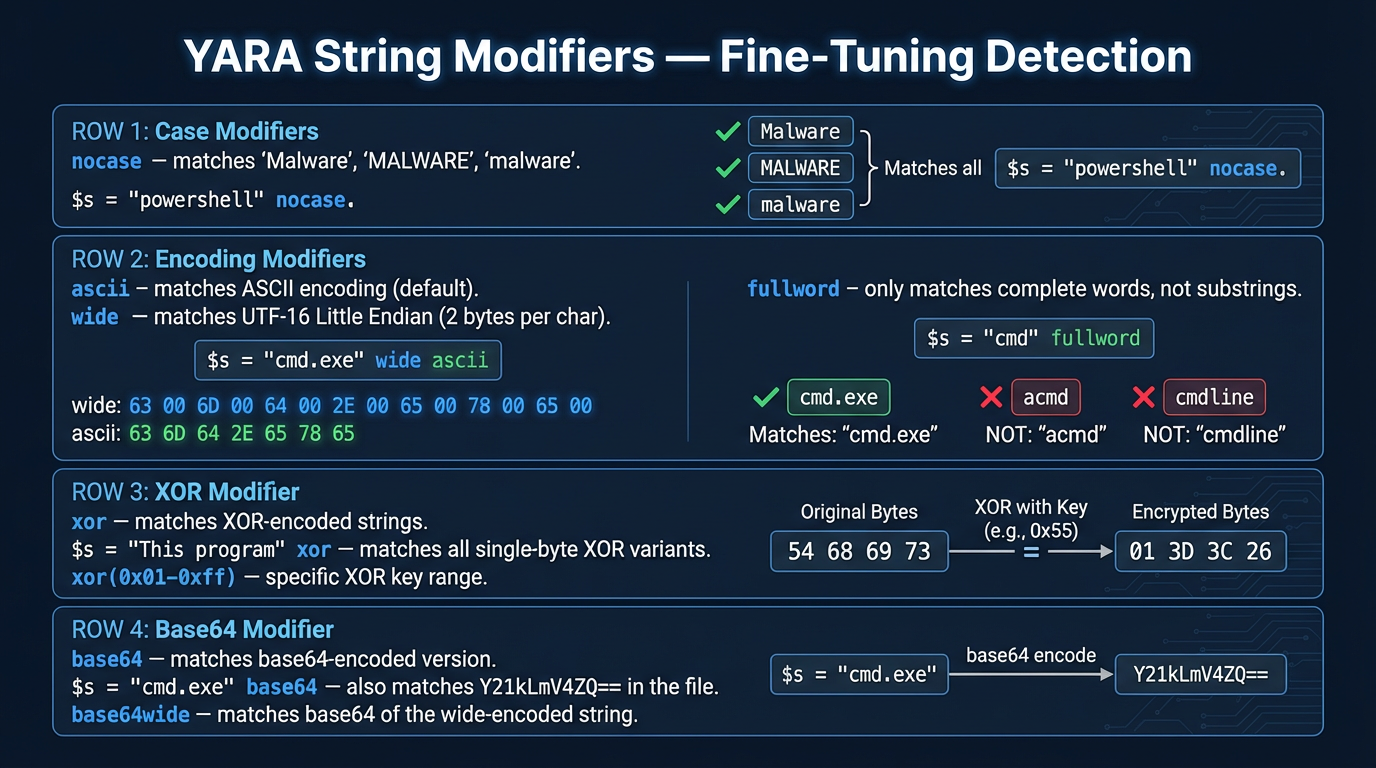

Text String Modifiers

nocase — Case-Insensitive Matching

The nocase modifier makes a text string match regardless of case:

$s = "powershell" nocase

This matches powershell, PowerShell, POWERSHELL, pOwErShElL, and every other combination. Without nocase, YARA performs exact case matching by default.

When to use: Almost always for function names, command names, and tool names. Attackers routinely vary case to evade simple string matching. The only time you want case-sensitive matching is when the exact case is itself a distinguishing indicator (rare).

wide — UTF-16 Little-Endian Matching

Windows internally uses UTF-16 Little-Endian (LE) for many strings. In UTF-16 LE, each ASCII character is followed by a null byte:

ASCII:   c   m   d   .   e   x   e
Bytes:   63  6D  64  2E  65  78  65

UTF-16:  c       m       d       .       e       x       e
Bytes:   63 00   6D 00   64 00   2E 00   65 00   78 00   65 00

The wide modifier matches the UTF-16 LE version:

$s = "cmd.exe" wide

You almost always want both encodings:

$s = "cmd.exe" wide ascii

This matches both the ASCII and UTF-16 LE versions of the string in a single rule.

When to use: Any time you scan Windows executables, DLLs, or memory dumps. Windows PE files contain both ASCII and wide strings. PowerShell scripts that are read by .NET often have wide string variants in memory.

fullword — Whole Word Matching

The fullword modifier ensures the string is not part of a larger word:

$s = "cmd" fullword

When to use: Short strings that commonly appear as substrings of legitimate words. Without fullword, searching for $s = "net" would match internet, network, ethernet, and thousands of other legitimate strings.

Combining Modifiers

Modifiers stack:

$s = "CreateRemoteThread" nocase wide ascii fullword

This matches CreateRemoteThread in any case, in both ASCII and UTF-16 encoding, but only as a complete word — not as part of a larger identifier.

Click to enlarge

Advanced Modifiers: xor and base64

xor — XOR-Encoded String Matching

Attackers frequently XOR-encode strings to hide them from simple text searches. A single-byte XOR with key 0x55 transforms:

Original:  T   h   i   s       p   r   o   g   r   a   m
Hex:       54  68  69  73  20  70  72  6F  67  72  61  6D
XOR 0x55:  01  3D  3C  26  75  25  27  3A  32  27  34  38

The result is unreadable gibberish. But YARA's xor modifier catches it:

$s = "This program" xor

This tests all 256 possible single-byte XOR keys (0x00 through 0xFF) and matches if any key produces the target string. You can also specify a key range:

$s = "This program" xor(0x01-0xff)

This skips key 0x00 (which produces the original plaintext string — no actual encoding).

base64 — Base64-Encoded String Matching

PowerShell's -EncodedCommand parameter and many malware loaders use Base64 encoding. The base64 modifier matches the Base64-encoded version of a string:

$s = "cmd.exe" base64

YARA will match files containing Y21kLmV4ZQ== (the Base64 encoding of "cmd.exe"). The modifier handles all three possible Base64 alignment offsets, so it catches the encoded string regardless of where it appears in a larger Base64 blob.

$s = "cmd.exe" base64wide

The base64wide variant matches the Base64 encoding of the UTF-16 LE version — useful for detecting encoded PowerShell commands that operate on Unicode strings internally.

Hex Strings: Binary Pattern Mastery

Hex strings are your primary tool for matching binary content — shellcode, file headers, executable signatures, and encoded payloads. They use byte-level matching with powerful wildcards.

Basic Hex Patterns

$pe_header = { 4D 5A 90 00 }

This matches the classic DOS/PE executable header: "MZ" followed by 0x90 0x00. Every Windows .exe and .dll starts with this signature.

Wildcards (??)

$call_pattern = { E8 ?? ?? ?? ?? C3 }

This matches the x86 instruction sequence: CALL relative_offset followed by RET. The E8 byte is the CALL opcode, the four ?? wildcards match any 4-byte relative address, and C3 is the RET instruction. This pattern is common in function epilogues.

Jumps ([N-M])

Jumps let you match patterns with a variable number of bytes between known anchors:

$pattern = { 4D 5A [20-60] 50 45 00 00 }

This matches a file starting with "MZ" followed by "PE\0\0" somewhere between 20 and 60 bytes later. The [20-60] jump says "skip 20 to 60 bytes of anything." This is essential for PE header matching because the offset from the MZ header to the PE signature varies between executables.

Fixed-length jumps are also supported:

$pattern = { E8 [4] C3 }

This is equivalent to { E8 ?? ?? ?? ?? C3 } — a CALL with exactly 4 bytes of offset followed by a RET.

Alternation (|)

Alternation lets you match one of several byte sequences at a position:

$shellcode = { (6A 40 | 6A 20) 68 00 10 00 00 }

This matches either 6A 40 (push 0x40) or 6A 20 (push 0x20) followed by the common VirtualAlloc parameter sequence. Different shellcode generators use different memory protection flags, but the surrounding code is identical.

Combining Hex Features

$complex = { 4D 5A [20-200] 50 45 00 00 [0-500] (2E 74 65 78 74 | 2E 63 6F 64 65) }

This matches PE files where the .text or .code section header appears within 500 bytes after the PE signature. It combines a fixed header, a variable jump, a fixed signature, another variable jump, and alternation — all in a single hex string.

Regex Strings: Variable Pattern Detection

Regex strings handle patterns that cannot be expressed as fixed text or hex. They use PCRE-like syntax between forward slashes:

IP Address Patterns

$ip = /\d{1,3}\.\d{1,3}\.\d{1,3}\.\d{1,3}/

Matches any IPv4 address pattern in a file. Useful for finding hardcoded C2 IP addresses.

URL Patterns

$url = /https?:\/\/[a-z0-9\-\.]+\.(ru|cn|tk|xyz|top)\/[a-z0-9]{5,}/i

Matches HTTP/HTTPS URLs pointing to suspicious TLDs with randomized path segments. The /i flag makes the regex case-insensitive.

Base64 Content Detection

$b64 = /[A-Za-z0-9+\/]{50,}={0,2}/

Matches Base64-encoded blobs of at least 50 characters. Useful for finding encoded payloads, commands, or configuration data embedded in scripts.

PowerShell Obfuscation

$ps_obfuscated = /\-[eE][nN][cC][oO]?[dD]?[eE]?[dD]?[cC]?[oO]?[mM]?[mM]?[aA]?[nN]?[dD]?\s+[A-Za-z0-9+\/=]{20,}/

Matches PowerShell's -EncodedCommand parameter (which accepts abbreviations like -enc, -enco, -encoded) followed by a Base64 string.

Choosing the Right String Type

The best rules combine multiple string types. A rule with text strings (for readable indicators), hex strings (for binary signatures), and regex strings (for variable patterns) covers more ground than any single type alone.

Practical Example: Cobalt Strike Beacon Detection

Let us apply everything we have learned to a real-world detection rule. Cobalt Strike is one of the most common C2 frameworks encountered in enterprise intrusions. Here is how an analyst would build a detection rule using multiple string types and modifiers:

rule CobaltStrike_Beacon_Indicator
{
    meta:
        author = "CyberBlue Academy"
        description = "Detects Cobalt Strike Beacon indicators"
        date = "2026-02-17"
        severity = "critical"
        mitre_att_ck = "T1071.001"

    strings:
        // Text strings with modifiers
        $sleep = "SleepMask" nocase wide ascii
        $beacon = "beacon.dll" nocase wide ascii
        $pipe = "\\.\pipe\msagent_" nocase

        // Hex strings for binary signatures
        $config_header = { 00 01 00 01 00 02 ?? ?? 00 03 }
        $xor_key = { 69 68 69 68 69 68 69 68 }
        $pe_header = { 4D 5A [20-200] 50 45 00 00 }

        // Regex for C2 URL patterns
        $c2_uri = /\/[a-zA-Z]{4,8}\.(js|html|php|asp)\?id=[0-9]{6,}/

    condition:
        $pe_header at 0 and
        filesize < 1MB and
        (2 of ($sleep, $beacon, $pipe) or
         $config_header or
         ($xor_key and $c2_uri))
}

This rule uses:

• Text strings with nocase + wide + ascii for known Cobalt Strike strings
• Hex strings for the beacon configuration header and XOR key
• Hex string with jump for the PE header validation
• Regex for the C2 URI pattern
• Flexible condition with multiple detection paths

What's Next

You now have a complete toolkit for writing YARA strings that catch malware variants, encoded payloads, and binary signatures. In Lesson 7.3, you will master the condition section — Boolean logic, string counting, file properties, and position operators that control precisely when your rules fire. The condition is where you eliminate false positives and build rules that are precise enough for production deployment.
