Lab 7.2 — Pivot and Expand

Lab Overview

The Scenario

Your SOC dashboard shows a new Wazuh alert: outbound network traffic to a suspicious external IP address from one of your monitored endpoints. The alert alone gives you an IP and a timestamp — not enough to act on.

Your mission: start from that single IP, pivot between Wazuh and MISP, and uncover the full attack picture — the domain it resolves to, the malicious file that triggered the connection, and the threat campaign behind it all.

Every pivot adds a piece to the puzzle. By the end, you'll have a complete threat profile ready for escalation.

Part 1: Start in Wazuh — Find the Suspicious IP

Step 1: Open the Wazuh Dashboard

Navigate to the Security Events section of the Wazuh Dashboard. Set the time range to cover the pre-loaded alert window (last 24 hours).

Step 2: Identify the Initial Alert

Search for alerts with high severity (rule level >= 10) related to outbound network connections. Look for alerts that reference an external IP address outside your internal network ranges.

rule.level: >= 10 AND NOT data.srcip: 10.* AND NOT data.srcip: 192.168.*

Record the following from the alert:

• Source agent (which endpoint triggered the alert)
• Destination IP address (the suspicious external IP)
• Rule ID and description
• Timestamp

Step 3: Search for All Activity Involving This IP

Now query Wazuh for every alert involving the suspicious IP:

data.srcip: <SUSPICIOUS_IP> OR data.dstip: <SUSPICIOUS_IP>

Document the total alert count, the agents involved, and the time span. This tells you how long the IP has been active in your environment and which endpoints are affected.

Part 2: First Pivot — Wazuh → MISP (IP Lookup)

Step 4: Search MISP for the Suspicious IP

Open MISP in a new browser tab. Navigate to the Event Index page and use the search function to look up the suspicious IP address you found in Wazuh.

1. Go to Event Actions → Search Attributes
2. Enter the IP address in the search field
3. Select attribute type: ip-dst or search across all types

Record from MISP:

• Which MISP event(s) contain this IP
• The event title and threat level
• The associated tags (TLP, threat actor, campaign name)
• Any related attributes in the same event

Step 5: Discover the Related Domain

Within the MISP event that contains your suspicious IP, look at the other attributes. You should find a domain name linked to the same event — this is the domain the IP resolves to (or was used alongside in the campaign).

Record:

• The domain name
• Its attribute type (domain, hostname, etc.)
• Any comments or context attached to it

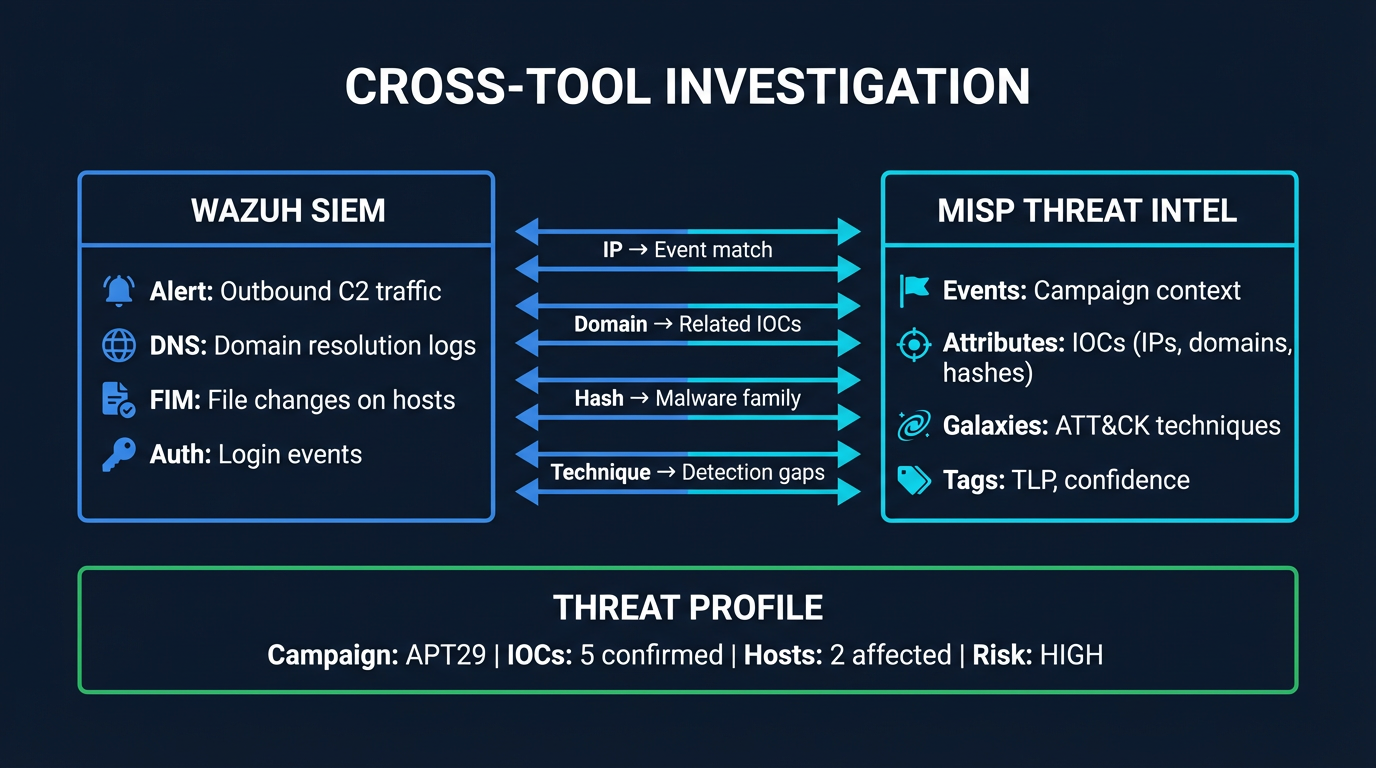

Click to enlarge

Part 3: Second Pivot — MISP → Wazuh (Domain Search)

Step 6: Search Wazuh for the Domain

Return to the Wazuh Dashboard and search for the domain you discovered in MISP:

full_log: *<DOMAIN_NAME>* OR data.url: *<DOMAIN_NAME>*

If results appear, this confirms the domain is active in your environment — not just in threat intelligence feeds.

Record:

• Number of alerts referencing this domain
• Which agents are affected
• What type of activity the alerts describe (DNS query, HTTP request, etc.)
• Any file hashes or filenames mentioned in the same alerts

Step 7: Extract the File Hash

Examine the Wazuh alerts referencing the domain. Look for alerts that include file integrity monitoring (FIM) data or process execution logs that reference a file hash (MD5, SHA1, or SHA256).

data.url: *<DOMAIN_NAME>* AND (syscheck.md5_after: * OR syscheck.sha256_after: *)

If FIM alerts aren't present, check process creation events for hashes in the command line or parent process fields.

Record:

• The file hash (and hash type)
• The filename associated with it
• The path where the file was found

Part 4: Third Pivot — Wazuh → MISP (Hash Lookup)

Step 8: Search MISP for the File Hash

Return to MISP and search for the file hash you extracted from Wazuh:

1. Event Actions → Search Attributes
2. Enter the hash value
3. Search across attribute types: md5, sha1, sha256

Record from MISP:

• Which event(s) contain this hash
• Is it the SAME event as the IP, or a DIFFERENT one?
• The malware family or tool name (if tagged)
• Any additional IOCs in this event you haven't seen yet

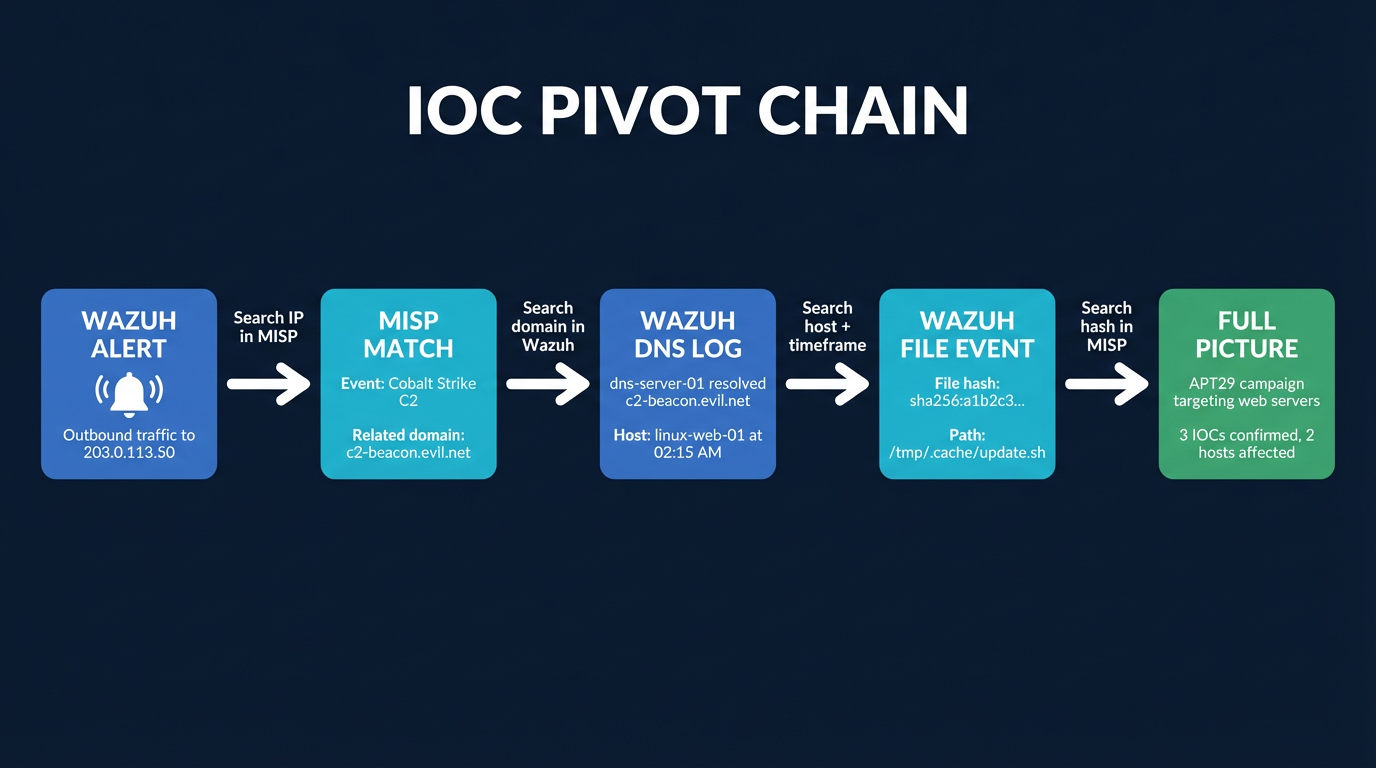

Step 9: Map the Complete Chain

At this point you should have a chain of at least 4 connected IOCs:

[Wazuh Alert] → Suspicious IP
      ↓ (pivot to MISP)
[MISP Event] → IP + Related Domain
      ↓ (pivot back to Wazuh)
[Wazuh Alert] → Domain activity + File Hash
      ↓ (pivot to MISP)
[MISP Event] → Hash + Malware Family + Campaign

Each arrow is a pivot. Each pivot added context that wasn't visible from the starting point.

Click to enlarge

Part 5: Build the Threat Profile

Document Your Pivot Chain

Using the data from all four pivots, create a one-page threat profile:

THREAT PROFILE — Pivot & Expand Investigation
═══════════════════════════════════════════════
Date: [today's date]
Analyst: [your name]
Starting Point: Wazuh alert — outbound traffic to suspicious IP

PIVOT CHAIN
───────────
1. INITIAL IOC (Wazuh)
   IP Address: [suspicious IP]
   Source Agent: [agent name]
   Alert Rule: [rule ID — description]
   First Seen: [timestamp]

2. FIRST PIVOT → MISP
   MISP Event: [event title]
   Threat Level: [high/medium/low]
   Related Domain: [domain found in same event]
   Campaign Tags: [any campaign/actor tags]

3. SECOND PIVOT → Wazuh
   Domain Active in Environment: [yes/no]
   Affected Agents: [list]
   Activity Type: [DNS/HTTP/process execution]
   File Hash Extracted: [hash value]

4. THIRD PIVOT → MISP
   Hash Match: [yes/no — same or different event]
   Malware Family: [if identified]
   Additional IOCs: [any new indicators found]

ASSESSMENT
──────────
Scope: [number of affected endpoints]
Confidence: [high/medium/low — based on number of confirmed pivots]
Recommended Action: [block IOCs / isolate host / escalate to IR team]

Deliverable Checklist

Before completing the lab, ensure you have:

• Initial Alert Documented — IP address, agent, rule ID, and timestamp from Wazuh
• First Pivot (IP → MISP) — MISP event details, related domain discovered
• Second Pivot (Domain → Wazuh) — Domain confirmed active in environment, file hash extracted
• Third Pivot (Hash → MISP) — Hash correlated to malware family or campaign
• Complete Threat Profile — One-page document with all four pivot points and assessment

What's Next

In Lab 7.3 — Enrich and Contextualize, you'll take pivoting further by adding automated enrichment — using MISP's correlation engine and external feeds to automatically surface related IOCs, reducing the manual pivot work you did in this lab.
